The Euromex NexiusZoom series stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples.

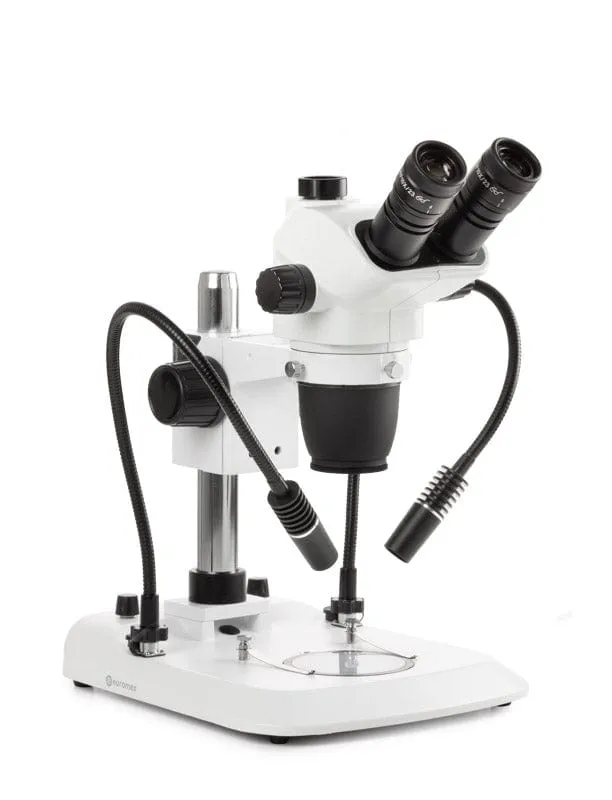

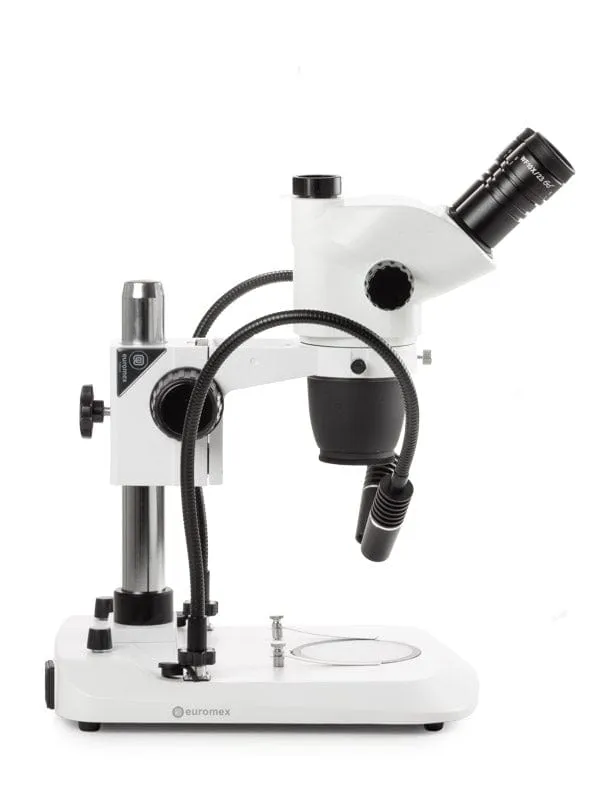

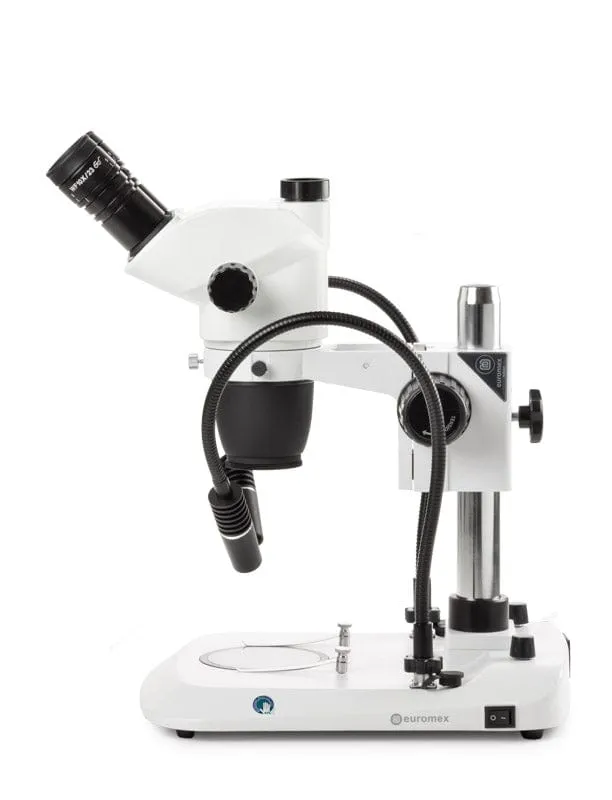

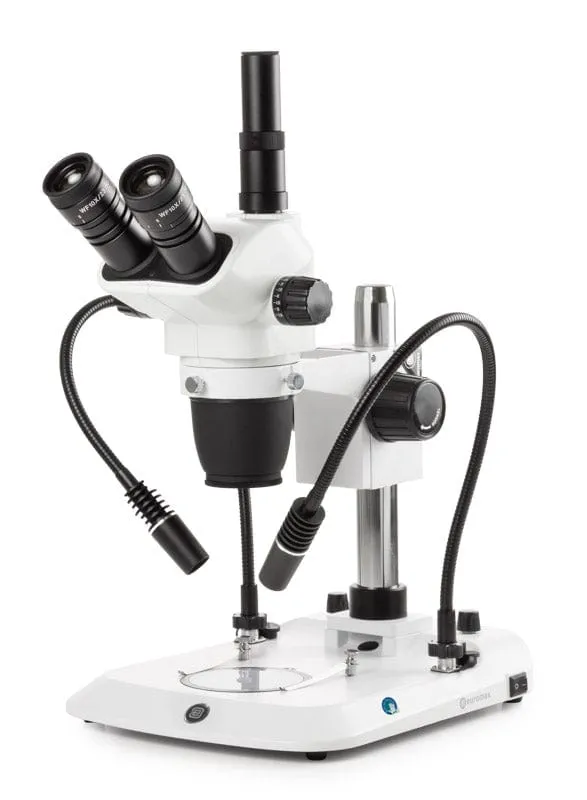

The NexiusZoom NZ1703-PG microscope is supplied with a pillar stand with two gooseneck type LED incident illumination. Ideal for a wide variety of educational and laboratories applications.
FEATURES:
- Trinocular head with HWF 10x/23mm
- Zoom ratio 1: 8.4, total magnification 6.5x to 55x
- Ergonomic pillar stand
- Dual 3 W LED illumination
- Large working distance
- APL, antimicrobial
EYEPIECES
The NexiusZoom EVO is supplied with a pair of HWF 10x/23 mm eyepieces.
HEAD
Trinocular head with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
Interpupillary distance adjustable between 54 mm and 75 mm. Fixed light path beam splitter (50:50). Equipped with click-stops magnification knob.
OBJECTIVES
Supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. WD 110 mm.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
STAND
Ergonomically designed pillar stand with two 3W gooseneck type incident LED and 3W LED for transmitted.
Supplied with two object clamps. Alloy metal cast, hardened coating.
ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously, the light intensities can be adjusted separately.
APL (ANTIMICROBIAL PROTECTION LAYER) APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold.
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box.
Packaging dimension: 22.79x19.26x13.36 inch / gross weight: 19.8 lbs
